safety laminated glass

Custom Curved Laminated Safety Glass Ultra Clear For Window / Door

Description:

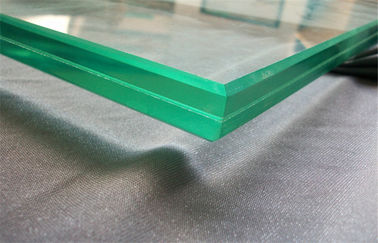

The Curved laminated glass is one kind of safety made under high temperature by interlaying PVB membrane between curved glasses. It can be two sheets or more than two sheets.


1. Features:

1) Safety Once broken, the broken pieces of laminated glass would not fall down or shoot away, enable the human or facilities be protected from hurt.

2) Safeguard The laminated glass has strong resistance against theft, malicious destruction and violence


3) Sound-insulation The PVB film has insulation function to the noise wave, thus the transferring of noise can be weakened.


4) Anti-UV The additive of PVB can filter 99% of the ultraviolet ray from the sunlight and protect the interior decoration from aging or fading caused by UV.


5) Heat-insulation The laminated glass(especially for colorful laminated glass) can reduce the solar radiation, saving energy and air-conditioning cost


6) Fire-proof When heated or roasted, the laminated glass will not break or collapse quickly so as to keep the fire from spreading. Time can be saved for warning, human’s evacuating and extinguishing
When broken by unexpected force, the broken pieces will be bonded by PVB with radial crack but hurting no people. The original shape and visibility can still be kept for continuous use for certain time.

2. Application:

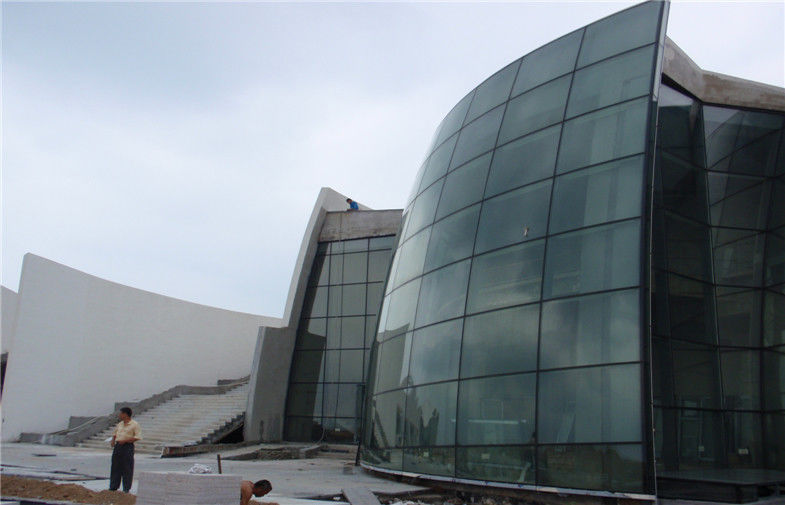

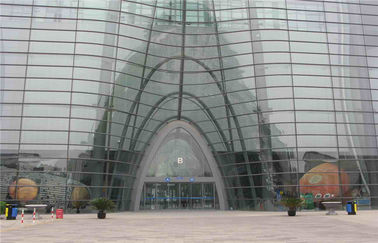

It's used in curtain wall with curved structure, skylight, sightseeing elevator, Hyperboloid and taper shape buildings.

3. Specification:

Max Size: 2600*6000mm
Min Size: Any
Sole glass thickness: 3mm-25mm
Film thickness: 0.38mm and multiple of 0.38mm

Type: Flat laminated glass, Curved laminated glass, Tempered laminated glass, Laminated insulated glass

Each PVB film layer thickness is 0.38mm,we will use the right layers according to clients’ actual products

4. Quality:

AS/NZS 2208:1996 Safety glazing materials in buildings
In accordance with CE certificate EN14449:2005
In accordance with GB9962-1999

Pass Chinese Safety Glass Compulsory Certification (CCC).

In accordance with CE Standard

Specifications:
